NOK 오일씰(NOK 리데나) 품번

오일씰: 회전용으로만 사용되며 외부로부터 침투되는 먼지,오염물질등을 내부에 있는 오일, 구리스 및 윤활제와 접촉하지 못하도록 하며 회전축의 오일 및 구리스의 누유를 방지하는 역할을 수행합니다. 오일씰은 스프링의 일정한 장력에 의해 샤프트에 밀찰하여 회전력을 유지하며 씰링 기능을 합니다.

압력 : max 0.3bar 이내(고압용의 경우 특수사양이 적용됩니다.)
SC타입   : 외경이 고무재질로 덮여짐
TC타입 : SC타입에 더스트립 추가
SB타입   : 외경이 금속으로 되어있음
TB타입  : SB타입에 더스트립 추가
SA타입   : 금속외경에 캡으로 보강
TA타입  : SA타입에 더스트립추가
TCV타입: 고압용 최대압력 5bar이하
TCN타입: TA타입에 특고압용 10bar이하
DC타입 : 앞면 뒷면 양쪽 스프링적용
VC타입 : SC타입에 스프링 없음
VG타입 : VC타입에 외측표면에 주름
VB타입 : SB타입에 스프링 없음

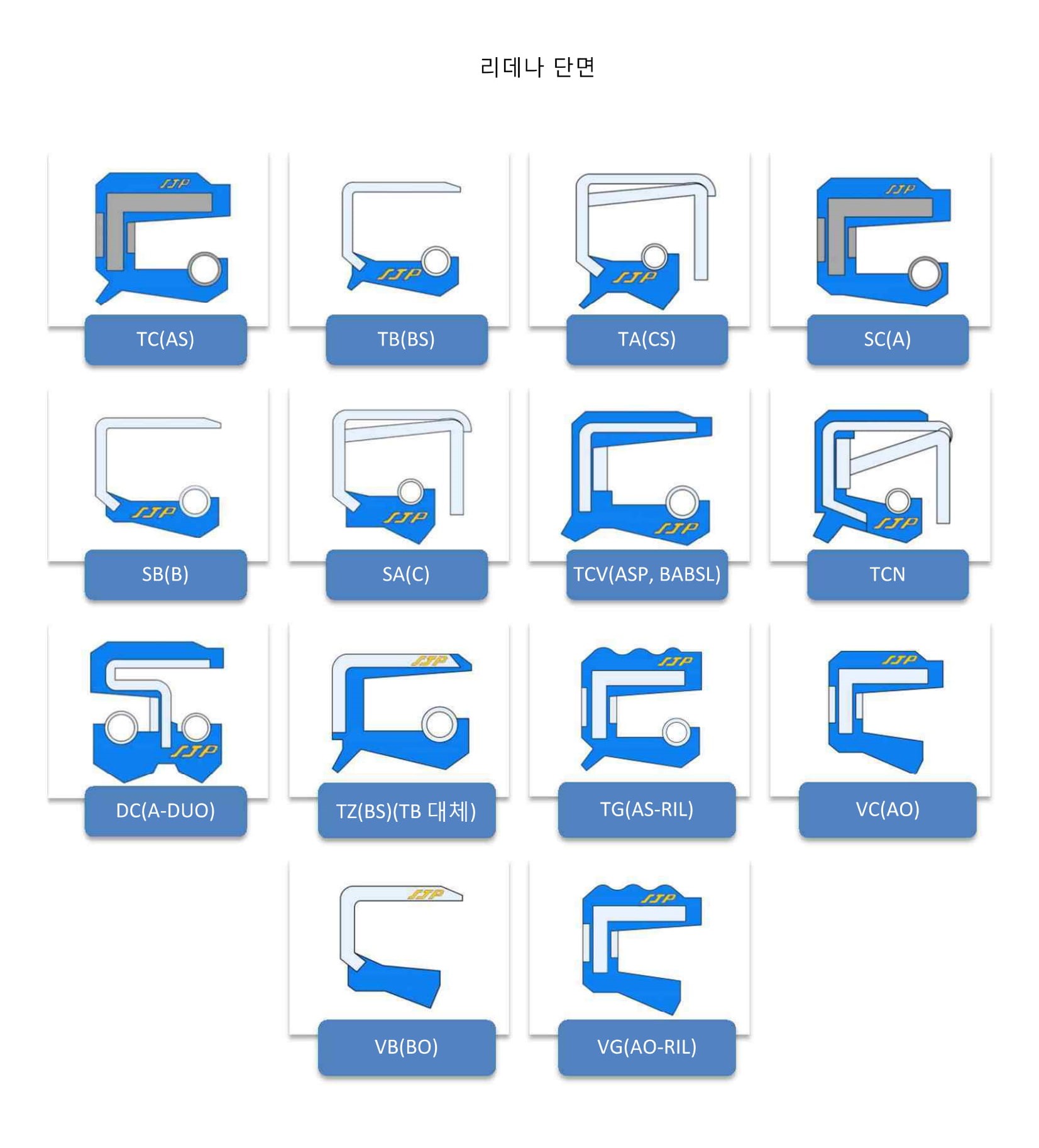

오일씰 단면



내경*외경*두께	TC타입	TB타입
7*20*7	AE0090A0
8*22*7	AE0158A4	AD0158E0
8*25*8	AE0164E0
8*34*8	AE0169E0
9*22*7	AE0205A0
9*28*8	AE0210E0
10*20*7	AE0260J0	AD0260E1
10*25*7	AE0279A6	AD0279E0
10*28*8	AE0285E0
11*25*7	AE0311E0	AD0311E0
11*30*10	AE0315E0
12*22*7	AE0371E0	AD0371E0
12*23*8	AE0375E0
12*25*7	AE0382A0	AD0382E0
12*28*7	AE0387E0
12*30*9	AE0393E0
12*32*7	AE0399E1
13*25*7	AE0473F0	AD0473E0
13*28*7	AE0478A0
13*30*8	AE0483G0
14*25*7	AE0519E0
14*28*7	AE0526A0	AD0526E0
14*28*11	AE0529E0
14*32*9	AE0536E0
15*25*7	AE0588K1	AD0588G0
15*30*7	AE0598A0	AD0598G0
15*30*10	AE0600E0
15*32*9	AE0604E0	AD0604E0
15*35*7	AE0610F0
15*35*8	AE0611E1
16*26*7	AE0678F1	AD0678F0
16*28*7	AE0685G0	AD0685F0
16*30*7	AE0687A0	AD0687H0
16*35*9	AE0698E0
17*28*6		AD0735P0
17*30*7	AE0743E0
17*30*8	AE0745E8	AD0745E1
17*32*7	AE0750E0
17*32*8	AE0751H6	AD0751F0
17*35*7	AE0759E0	AD0759E0
17*35*8	AE0760H5	AD0760E1
17*35*10	AE0761F0
17*38*7	AE0768E0	AD0768E0
17*40*9	AE0772E1
18*30*8	AE0817E0
18*32*7	AE0823E0	AD0823E0
18*35*8	AE0829A0	AD0829F0
18*35*9	AE0831E0
18*38*7	AE0838E0
19*32*8	AE0870E0
19*35*7	AE0874E1
19*35*8	AE0875A0	AD0875E0
19*36*7	AE0879E0
19*38*7	AE0880E0	AD0880E0
19*38*10	AE0881E0	AD0881E0
20*30*7	AE0984H0
20*32*6	AE0995E0
20*32*8	AE0997E0	AD0997I1
20*34*7	AE1003E2
20*35*7	AE1012G0	AD1012F2
20*35*8	AE1013A4	AD1013E0
20*35*10	AE1015F0	AD1015F0
20*36*7	AE1017F0	AD1017E0
20*37*7	AE1020E1
20*37*9	AE1022E1
20*37*10	AE6758E0
20*38*7	AE1024F0
20*40*7	AE1029E0	AD1029F0
20*40*8	AE1030E1
20*40*9	AE1031E0
20*40*10	AE1032G0	AD1032F0
20*40*11	AE1033A0	AD1033F0
20*42*8	AE1037E0
20*44*12	AE1042E0
20*45*8	AE1043E1
20*45*12	AE1045E0	AD1045E0
21*38*8	AE1089E0
21*40*7	AE1092E2
22*35*8	AE1127E0	AD1127E0
22*38*8	AE1133E0	AD1133F1
22*40*11	AE1141E0
22*42*7	AE1145E0	AD1145E0
22*42*10	AE1147E0	AD1147F0
22*42*11	AE1148A5	AD1148F0
23*42*11	AE1224A0	AD1224E4
24*38*8	AE1252E0	AD1252E0
24*38*10	AE1255E1
24*40*8	AE1260A0	AD1260E0
24*45*7	AE1265E3
24*45*10	AE1266E0	AD1266F0
25*35*6	AE1292G0
25*38*7	AE1306K0	AD1306H1
25*38*8	AE1307E1	AD1307E0
25*40*7	AE1313E2	AD1313E3
25*40*8	AE1314A0	AD1314F0
25*40*10	AE1315F0
25*42*8	AE1322F2
25*42*11	AE1325E0
25*45*7	AE1334E0
25*45*8	AE1335E0	AD1335E0
25*45*10	AE1337F0	AD1337G0
25*45*11	AE1338A0	AD1338E2
25*45*12	AE1339E0
25*46*7	AE1344E0
25*47*7	AE1350E1
25*47*8	AE1351E2	AD1351E1
25*48*7	AE1356E0	AD1356E0
25*49*12	AE1358E0
25*50*12	AE1363E0
25*50*14		AD1364E0
25*52*10	AE1377F0
26*38*7	AE1463E0
26*40*7	AE1467E0	AD1467E0
26*40*8		AD1468E0
26*40*9		AD1469E0
26*42*8	AE1474A0	AD1474E0
26*48*11	AE1481E0	AD1481E0
26*52*8	AE1484E1
27*42*7	AE1510E0
27*47*11	AE1518A0	AD1518H0
28*40*8	AE1538E5	AD1538E0
28*42*7	AE1543E1
28*42*8	AE1544F0
28*44*8	AE1545F0	AD1545E0
28*44*11	AE1546E0	AD1546E0
28*45*8	AE1550F4	AD1550F0
28*45*11	AE1553F0
28*47*7	AE1557E1
28*47*8	AE1558F0
28*48*8	AE1562F1	AD1562E0
28*48*11	AE1563A0	AD1563E0
29*45*9	AE1630E0
30*42*8	AE1666F0	AD1666E0
30*44*7		AD1671G0
30*45*8	AE1679A0	AD1679G0
30*45*11	AE1681E1	AD1681E0
30*46*7	AE1688E0
30*46*9	AE1689E1
30*46*10	AE1690E0
30*47*8	AE1692E1
30*47*10	AE1693E1
30*48*7	AE1699E1	AD1699E0
30*48*8	AE1700E0
30*48*11	AE1702E0
30*50*7	AE1704E0
30*50*8	AE1705G0	AD1705E0
30*50*11	AE1709A0	AD1709E0
30*50*13	AE1712E0
30*52*8	AE1720E0	AD1720E0
30*52*11	AE1723F0	AD1723E0
30*52*12	AE1724E0
30*55*12	AE1736E1
30*55*14	AE1738E0
31*45*9	AE1794E0
32*45*8		AD1880E0
32*48*8	AE1894G0	AD1894E0
32*52*8	AE1902E0	AD1902E1
32*52*11	AE1904A0	AD1904F0
32*54*10	AE1910E0
33*44*8		AD1929F1
33*50*11	AE1935E1
34*52*11	AE1975E0
34*54*11	AE1978A0	AD1978E0
35*48*8	AE2048K0	AD2048F0
35*50*7	AE2056E0
35*50*8	AE2057A0	AD2057G2
35*50*12	AE2061E0
35*52*7	AE2066E0	AD2066E0
35*52*8	AE2067E1
35*52*9	AE2068E0
35*52*11	AE2071F0	AD2071E1
35*52*12	AE2072E0	AD2072E0
35*55*8	AE2081E0	AD2081F0
35*55*9	AE2083E1	AD2083E0
35*55*10	AE2084E0
35*55*11	AE2085A0	AD2085G0
35*55*12	AE2086E1
35*60*12	AE2107E1	AD2107E0
35*60*14	AE2108E0	AD2108F0
35*62*12	AE2121F1
36*58*12	AE2170E0
37*53*7	AE2196E0
38*50*8	AE2218E0
38*55*8	AE2230E0	AD2230I0
38*55*9	AE2231F0	AD2231E0
38*58*7	AE2238E0
38*58*8	AE2239E0	AD2239E0
38*58*11	AE2240A0	AD2240I0
38*58*13	AE2242E0
38*60*11	AE2245E0
38*62*9	AE2249E0
38*62*11	AE2250E0
40*52*8	AE2343E0	AD2343E0
40*55*8	AE2359H0	AD2359G0
40*55*9	AE2361E0
40*56*10	AE2366E0
40*58*8	AE2369A0	AD2369F0
40*58*12	AE2372E0
40*60*12	AE2379E0	AD2379E0
40*62*8	AE2386H1	AD2386E0
40*62*11	AE2388A0	AD2388E0
40*62*12	AE2390K0	AD2390I0
40*63*7	AE2396F0
40*65*10	AE2402E0
40*65*12	AE2403F0	AD2403E0
40*65*14	AE2405E1	AD2405E0
40*68*11		AD7424E0
42*55*9	AE2483E0
42*60*9	AE2493E0	AD2493E0
42*65*9	AE2504F0	AD2504E0
42*65*12	AE2507A0	AD2507I0
44*60*9	AE2557E2
44*62*10	AE2560E0
45*60*9	AE2643E1	AD2643G0
45*62*9	AE2651A0	AD2651G0
45*62*12		AD2653E0
45*68*9	AE2666E0	AD2666G1
45*68*12	AE2668A0	AD2668G0
45*68*14	AE2670E0
45*70*12	AE2676E0	AD2676E0
45*70*14	AE2677E0	AD2677E0
45*72*12	AE2685H0	AD2685E0
46*64*11	AE2716E0
48*62*9	AE2775E0
48*65*9	AE2780F0	AD2780G0
48*70*9	AE2788H1	AD2788E0
48*70*12	AE2791A0	AD2791E0
48*70*14	AE2793E0
49*70*11	AE2808E0
50*65*9		AD2838F0
50*68*9	AE2847A0	AD2847F0
50*68*10	AE2848G0
50*70*10	AE2854E0	AD2854F0
50*70*11	AE2856E0
50*70*12	AE2857E0
50*72*9	AE2861E1	AD2861E2
50*72*10	AE2862E1	AD2862E0
50*72*12	AE2864A0	AD2864G0
50*72*14		AD2867F0
50*80*12	AE2887E0
50*80*14	AE2888E0	AD2888F0
52*70*9	AE2959H1	AD2959F0
52*75*9	AE2965F1
52*75*12	AE2967A0	AD2967E0
52*75*14	AE2969E0
52*78*12	AE2972E0
54*70*9	AE3010E0
55*72*9	AE3040A0	AD3040F0
55*72*12	AE3042E2	AD3042E0
55*75*9	AE3045E0
55*78*9		AD3053E0
55*78*12	AE3055A0	AD3055H0
55*78*14	AE3056E0
55*79*13	AE3059E0
55*80*10	AE3061E0
55*80*12	AE3062E1	AD3062E0
55*85*14	AE3072F0	AD3072E0
56*72*9	AE3092E2	AD3092E0
56*78*9	AE3093E0
56*78*12	AE3094E0	AD3094E0
58*75*9	AE3148F1
58*80*9	AE3152E0	AD3152E0
58*80*12	AE3154A6	AD3154F0
58*90*11	AE3159E0
60*75*9	AE3193F0	AD3193F0
60*78*9	AE3204E0	AD3204F0
60*80*12	AE3213E5	AD3213F0
60*80*13	AE3215E0
60*82*9	AE3220E0	AD3220E0
60*82*12	AE3222A0	AD3222I0
60*82*14	AE3224E0	AD3224E0
60*85*12	AE3234F2
60*90*11	AE3241E1
60*90*13	AE3243E0
60*90*14	AE3244E0	AD3244E0
62*80*9	AE3290E3	AD3290E0
62*85*9	AE3295E0	AD3295E0
62*85*12	AE3297A0	AD3297F4
63*80*9	AE3316F0	AD3316E0
63*85*12	AE3321E0	AD3321E2
65*88*12	AE3400A0	AD3400I0
65*88*14	AE3402E0	AD3402E0
65*90*13	AE3409A0	AD3409J0
65*95*14	AE3414F1
65*95*16		AD3415E0
68*90*12	AE3459A5	AD3459H0
68*95*13	AE3463F0	AD3463E9
70*88*12	AE3505F3	AD3505H0
70*90*12	AE3513E0
70*92*12	AE3519A0	AD3519K0
70*92*14	AE3521E0	AD3521G0
70*95*13	AE3527E0	AD3527H0
70*100*13	AE8520E2
70*100*14		AD3532E0
71*95*13	AE3549E0	AD3549E0
72*94*10		BD1423E1
75*95*13	AE3611E0
75*100*13	AE3618A0	AD3618I0
75*105*15		AD3631F0
75*110*13		AD3636E0
78*100*13		AD3694E0
80*100*12	AE3733E0
80*100*13	AE3734E0
80*105*13	AE3744A0	AD3744J0
80*105*15	AE3746F0	AD3746E0
80*115*15	AE3761E0	AD3761E1
85*110*13	AE3842A0	AD3842I0
85*110*15	AE3844E0	AD3844F0
85*115*15	AE3852E0	AD3852E0
85*120*15	AE3855E0	AD3855E0
90*110*13		AD3921E0
90*115*13	AE3932A9	AD3932J0
90*115*15	AE3934E0
90*120*13	AE3938E0
90*120*15	AE3939E0
90*125*15	AE3944F0	AD3944E0
90*125*17	AE3945E0	AD3945E0
90*135*15	AE3951E0
95*115*13	AE3984E0
95*120*13	AE3994A0	AD3994G0
95*120*15	AE3995E0
95*130*15	AE4007E0	AD4007E3
95*130*17		AD4008E0
100*114*12		AD7700E0
100*125*13	AE4063F0	AD4063A0
100*125*15	AE4065E0	AD4065F0
100*130*13		AD4073E1
100*135*15	AE4079E0	AD4079E0
100*135*17		AD4081E0
105*135*14	AE4153E0	AD4153A0
105*135*16		AD4154E0
105*140*15	AE4161E0
110*140*14	AE4212H7	AD4212A0
110*140*16		AD4214E0
110*145*15	AE4221E0	AD4221E0
110*145*17		AD4222E0
112*145*14	AE4237E0	AD4237E0
115*140*15	AE4279E0
115*145*14	AE4282E0	AD4282A0
115*145*16		AD4284E0
115*150*16		AD4292E0
120*150*14	AE4346H0	AD4346A0
120*150*16		AD4349F0
120*155*16	AE4355E0	AD4355E0
120*155*18		AD4356E0
125*155*14	AE4399F0	AD4399A0
125*155*16	AE4400F0	AD4400F0
125*160*16		AD4404E0
125*160*18		AD4405E0
130*160*14	AE4451F0	AD4451A0
130*160*16		AD4453E0
135*160*14		AD4494E0
135*165*14	AE4498E2	AD4498A0
135*175*16		AD4506E0
140*160*14	AE4535G0
140*170*14	AE4542E0	AD4542A0
140*180*16		AD4555E0
140*185*16	AE4558E0
145*175*14	AE4581E0	AD4581A0
145*175*16		AD4582E0
145*176*14		AD4584E0
145*190*16	AE4588E0
150*180*14	AE4624F6	AD4624A0
150*180*16	AE4626F0	AD4626E0
155*180*15	AE4666E0
155*200*20	AE4678E0	AD4678F0
160*190*15	AE04712E1
160*190*16		AD4713A4
160*196*20		AD04718E0
170*200*16	AE4795E0	AD4795A0
170*205*16	AE4800E0
170*225*20		AD04815F1
180*210*16	AE4898E5	AD4898A9
180*215*18		AD4905E0
185*210*15	AE4943E1
190*225*16	AE4983P2	AD4983A9
200*230*15	AE5053E2
200*235*18		AD5061X4
200*240*17		AD5066X0
200*240*20	AE5068E2	AD5068A8
210*250*16		AD5138E0
210*250*20		AD5140A5
220*250*16	AE5205E1
220*255*18	AE5208G3
220*260*22		AD5216A9
220*275*23	AE5224E0
220*275*26		AD5225E0
230*260*20		AD5283A0
230*270*16	AE5289E0
230*270*20	AE5290E0
240*270*20	AE5341E0
240*275*16	AE5346E0
240*275*18		AD5347X3
240*280*19		AD5351A6
250*285*18		AD5404E0
250*310*25		AD5412A0
260*320*25		AD5471A0
270*330*25		AD5523A0
280*320*22		AD5562E3
280*340*28		AD5572A0
290*350*25		AD5597A0
300*360*25		AD5640A6



내경*외경*두께	SC타입	SB타입
6*16*7	AC0052E3
7*18*7	AC0087E0
7*20*7	AC0090A0	AB0090E0
8*18*7	AC0145E0	AB0145E0
8*18*9		AB0147F0
8*22*7	AC0158A8	AB0158E0
9*22*7	AC0205A0	AB0205E0
10*20*7	AC0260H0	AB0260E0
10*21*8	AC0267E0	AB0267E0
10*22*8	AC0271E0	AB0271F0
10*25*7	AC0279A0	AB0279E0
10*26*8	AC0283E0
10*28*8	AC0285E0
10*30*7	AC0288E0	AB0288E0
11*22*7	AC0308E1	AB0308E2
11*25*7	AC0311E0	AB311E1
11*30*7	AC0314E0
12*22*7	AC0371E0	AB0371E0
12*25*7	AC0382A0	AB0382E0
12*28*7	AC0387E0	AB0387E0
12*30*9	AC0393E0	AB0393E0
12*32*6		AB0398E0
13*25*7	AC0473F0	AB0473E1
13*28*7	AC0478A0	AB0478E0
13*30*8	AC0483E1
14*24*6	AC0514E0	AB0514E0
14*25*7	AC0519E0	AB0519E1
14*28*7	AC0526A0	AB0526E0
14*32*9	AC0536E0
15*24*7	AC0584E1	AB0584E0
15*25*7	AC0588E5	AB0588F0
15*28*7	AC0592E1	AB0592E0
15*30*7	AC0598A0	AB0598E0
15*32*7	AC0603E0	AB0603E0
15*32*9	AC0604E0	AB0604E0
15*34*10	AC0606E0
15*35*7	AC0610F3	AB0610E0
15*35*8	AC0611E0
15*37*7	AC0616E0
16*26*7	AC0678E0	AB0678E0
16*28*7	AC0685F0	AB0685E0
16*28*6	AC0684E1
16*30*7	AC0687A0	AB0687E0
16*32*8	AC0691E0
16*35*9		AB0698E0
17*28*7		AB0736F0
17*30*6	AC0742E0	AB0742G0
17*30*8	AC0745E0	AB0745G0
17*30*7	AC0743E0
17*32*8		AB0751E0
17*32*7	AC0750E1
17*35*7	AC0759H0	AB0759E0
17*35*8	AC0760A0
17*35*6	AC0758E0
17*38*7	AC0768E1	AB0768E0
17*40*8	AC0771F0	AB0771E1
17*40*10	AC0773E0
18*30*7	AC0816E0	AB0816E0
18*30*8	AC0817E0	AB0817E0
18*32*9	AC0825E0
18*35*8	AC0829A0	AB0829E0
18*35*9		AB0831E0
18*35*7	AC0828E0
18*38*7	AC0838E0
19*30*8	AC0864F0	AB0864E0
19*35*8	AC0875A0
19*38*7		AB0880E0
19*38*10		AB0881E0
19*40*10	AC0883E0	AB0883E0
20*30*7	AC0984E0	AB0984H0
20*30*9	AC0987E0	AB0987E0
20*32*8	AC0997E0	AB0997E0
20*34*7	AC1003E1
20*35*7	AC1012E0	AB1012E0
20*35*8	AC1013A0	AB1013E0
20*36*7	AC1017E0	AB1017F0
20*36*10		AB1019E0
20*40*7	AC1029E0	AB1029E0
20*40*8	AC1030E0	AB1030E3
20*40*10	AC1032F0	AB1032E0
20*40*11	AC1033A0	AB1033F0
20*42*10	AC1038E0	AB1038E0
20*45*12	AC1045E0	AB1045E0
20*47*7	AC1048E0
21*35*7	AC1084E1	AB1084E0
22*32*7	AC1116E3	AB1116E0
22*35*7	AC1126F0	AB1126E0
22*35*8	AC1127E0	AB1127E0
22*36*10	AC1130E0	AB1130E0
22*37*8	AC1131E0
22*38*8	AC1133E0	AB1133E0
22*38*12	AC1136E0
22*40*8	AC1138E0	AB1138E1
22*40*10	AC1140E0	AB1140E0
22*42*7	AC1145E0	AB1145E0
22*42*11	AC1148A0	AB1148E0
22*42*10	AC1147E0
23*32*7	AC1213P1
23*42*11	AC1224A0	AB1224E0
23*42*7		AB1223E0
24*38*8	AC1252E0	AB1252E0
24*38*10		AB1255E0
24*38*7	AC1251E0
24*40*8	AC1260A0	AB1260E0
24*40*7	AC1259E0
24*45*7		AB1265E0
25*35*6	AC1292G0
25*37*8	AC1302F0	AB1302F0
25*38*7	AC1306E0	AB1306E0
25*38*8		AB1307E0
25*40*8	AC1314A0	AB1314F0
25*40*10	AC1315E0	AB1315E0
25*42*8	AC1322E0	AB1322E0
25*42*10	AC1324E0
25*42*11	AC1325E0
25*44*7	AC1327F0
25*45*8	AC1335E0	AB1335F0
25*45*11	AC1338A7	AB1338E0
25*45*10		AB1337F0
25*45*7	AC1334E0
25*47*6	AC1348E1	AB1348E0
25*47*10		AB1352E0
25*47*7	AC1350E0
25*48*8	AC1357E0
25*50*9	AC1361E0	AB1361E0
25*50*12		AB1363E0
25*52*10		AB1377E0
25*52*12		AB1379E0
25*52*8	AC1374E2
26*36*8		AB1459E0
26*38*8	AC1464E0	AB1464E0
26*40*8	AC1468E0	AB1468E0
26*42*8	AC1474A0	AB1474F0
27*40*8		AB1508E0
27*42*8	AC1511E0
27*43*9	AC1512E0	AB1512E0
27*47*11	AC1518A0	AB1518E0
28*38*7	AC1531F0	AB1531E0
28*38*8		AB1532E1
28*40*8	AC1538F0	AB1538E0
28*42*8	AC1544E0	AB1544E0
28*44*11	AC1546E0	AB1546G1
28*44*8	AC1545E0
28*45*8	AC1550E0	AB1550E0
28*48*11	AC1563A0	AB1563E0
28*50*8	AC1569E0
28*50*10	AC1570E0
30*39*7		AB1651F0
30*40*7		AB1656E0
30*42*8	AC1666E2	AB1666E0
30*44*9	AC1673E0	AB1673E0
30*45*8	AC1679A0	AB1679G0
30*45*12	AC1682E0	AB1682E0
30*45*9		AB1680E0
30*45*7	AC1677E1
30*45*11	AC1681E0
30*46*9	AC1689E0	AB1689E0
30*47*8	AC1692E0	AB1692F0
30*47*10		AB1693E0
30*47*12		AB1695E0
30*48*8	AC1700E0	AB1700E0
30*48*11	AC1702E0	AB1702E0
30*50*7	AC1704E0	AB1704F0
30*50*8		AB1705F0
30*50*9	AC1706E0	AB1706E0
30*50*10	AC1708E0	AB1708E0
30*50*11	AC1709A0	AB1709G0
30*52*10	AC1721E0	AB1721E0
30*52*7	AC1719E0
30*55*12		AB1736E0
31*47*7	AC1797E1
31*50*8	AC1799E0
32*43*10		AB1869E0
32*44*9	AC1871G1	AB1871E0
32*45*8	AC1880E0	AB1880E0
32*46*8	AC1884E0	AB1884E0
32*47*8		AB1888F0
32*48*8		AB1894E0
32*48*7	AC1893E0
32*51*10	AC1898E0
32*52*8	AC1902E0	AB1902E0
32*52*11	AC1904A0	AB1904E0
33*50*7	AC1933E0	AB1933E0
33*50*8	AC1934E0
33*52*7	AC1937E0	AB1937E0
33*56*12	AC1939E0
34*48*8	AC1968G1	AB1968E0
34*50*7	AC1971E0
34*54*11	AC1978A0	AB1978E0
35*47*7	AC2041E0	AB2041F0
35*48*8	AC2048E0	AB2048E0
35*50*7	AC2056E0	AB2056E0
35*50*8	AC2057A0	AB2057G0
35*50*10		AB2059E0
35*50*11	AC2060E0
35*52*7	AC2066E0	AB2066E0
35*52*10	AC2069E0	AB2069E0
35*52*12		AB2072F0
35*52*8	AC2067E0
35*52*9	AC2068E0
35*55*8	AC2081E0	AB2081E0
35*55*11	AC2085A0	AB2085F0
35*55*9一		AB2083F0
35*56*10	AC2094E0
35*58*9	AC2099E0	AB2099E1
35*60*12	AC2107E0	AB2107F0
35*60*8	AC2103E1
35*62*10	AC2118E0	AB2118E0
35*62*12	AC2121E0
36*50*7	AC2162E0	AB2162E0
36*50*10		AB2164E0
36*54*8	AC2166E0
37*62*12	AC2204E0
38*47*10		AB7101E0
38*50*8	AC2218E0	AB2218E1
38*55*8	AC2230E0	AB2230E0
38*55*9	AC2231E0	AB2231E0
38*56*10	AC2233E1
38*58*8	AC2239E0	AB2239E2
38*58*11	AC2240A7	AB2240G0
38*58*7		AB2238E0
38*62*11	AC2250E0	AB2250E0
40*52*8	AC2343E4	AB2343E3
40*55*9	AC2361E0	AB2361G0
40*55*7	AC2358E1
40*55*8	AC2359E0
40*55*10	AC2362E0
40*56*8	AC2365E0
40*58*8	AC2369A0	AB2369F0
40*58*7	AC2368E0
40*60*8	AC2375E0	AB2375E0
40*60*10	AC2377E0	AB2377E0
40*60*12		AB2379F0
40*62*7	AC2385E0	AB2385E0
40*62*8	AC2386E0	AB2386E0
40*62*11	AC2388A0	AB2388F0
40*62*12	AC2390E0	AB2390H0
40*65*10	AC2402E0	AB2402E0
40*65*12	AC2403E0	AB2403E0
40*65*14	AC2405E0
42*55*9		AB2483E0
42*58*10	AC2491E0
42*60*9	AC2493E0	AB2493F0
42*60*12		AB2495E0
42*62*10	AC2499E0
42*65*9	AC2504E0	AB2504E0
42*65*12	AC2507A0	AB2507E0
43*52*10		BB2041E0
43*60*10	AC2539E0
44*56*7		AB2551E0
45*60*9	AC2643E0	AB2643F0
45*60*7		AB2641E0
45*61*9		AB2647G0
45*62*9	AC2651A8	AB2651F0
45*62*10	AC2652E0	AB2652E0
45*62*12	AC2653E0	AB2653E0
45*65*10	AC2658E0	AB2658E0
45*65*12	AC2659E0
45*68*9	AC2666E0	AB2666F0
45*68*12	AC2668A0	AB2668F0
45*68*10	AC2667E0
45*70*14	AC2677E0	AB2677E0
45*70*12	AC2676E0
45*72*12	AC2685E0	AB2685E0
45*72*10	AC2684E0
46*65*9	AC2717E0
47*70*12	AC2735E0	AB2735E0
48*62*9		AB2775E0
48*65*9	AC2780E0	AB2780G0
48*68*10	AC2785E0
48*70*9	AC2788E0	AB2788E0
48*70*12	AC2791A0	AB2791E0
50*64*10		AB2834E0
50*65*9	AC2838G2	AB2838E0
50*68*9	AC2847E0	AB2847G0
50*68*10	AC2848E0
50*70*10	AC2854E0	AB2854G0
50*70*12	AC2857E0	AB2857E0
50*72*9	AC2861E0	AB2861E0
50*72*12	AC2864K0	AB2864G0
50*72*10		AB2862E0
50*72*13	AC2865E0
50*74*12	AC2872E0	AB2872E0
50*80*12	AC2887E0	AB2887F0
50*80*14	AC2888E0	AB2888E0
50*80*10		AB2886E0
51*62*7		AB8924E1
52*70*9	AC2959E0	AB2959F0
52*72*10	AC2961E0
52*75*9	AC2965E0	AB2965E0
52*75*12	AC2967A5	AB2967E0
54*72*12	AC3014E0	AB3014E1
54*82*10	AC3021E1
55*70*9	AC3036E0	AB3036F0
55*72*9	AC3040A0	AB3040G0
55*78*9	AC3053E1	AB3053E0
55*78*12	AC3055A0	AB3055J0
55*80*12	AC3062E0	AB3062E0
55*85*14	AC3072E0	AB3072F0
56*78*12	AC3094E0	AB3094E0
57*78*10	AC3107E1
58*75*9	AC3148E0	AB3148E0
58*80*9	AC3152E0	AB3152G0
58*80*12	AC3154A9	AB3154E0
60*75*9	AC3193E2	AB3193F0
60*75*10		AB3195F0
60*78*9	AC3204E0	AB3204F0
60*80*10	AC3211E0	AB3211E0
60*80*12	AC3213E0	AB3213E0
60*82*9	AC3220E0	AB3220E0
60*82*12	AC3222A0	AB3222G0
60*85*12	AC3234E0	AB3234E0
60*90*14		AB3244E0
62*80*9	AC3290E0	AB3290F0
62*85*12	AC3297A0	AB3297E0
62*85*9	AC3295E0
63*80*9	AC3316E0	AB3316E0
63*85*12	AC3321E0	AB3321E1
63*85*9		AB3320E0
65*82*10	AC3389E0	AB3389E0
65*82*12	AC3390E0
65*85*12	AC3395E0	AB3395E0
65*85*10	AC3394E1
65*88*12	AC3400A0	AB3400F0
65*90*10	AC3406E0	AB3406E0
65*90*13	AC3409A0	AB3409F0
65*90*12	AC3408E0
65*95*14	AC3414F0	AB3414E0
65*95*12	AC3413E0
66*86*10	AC3427E0
67*90*10	AC3451E0
68*90*12	AC3459A4	AB3459F0
68*95*13	AC3463E0	AB3463E0
70*88*12	AC3505E0	AB3505E0
70*90*12	AC3513E1	AB3513E0
70*90*10		AB3512E0
70*92*12	AC3519A0	AB3519G0
70*95*13	AC3527A0	AB3527G0
70*100*14	AC3532E0	AB3532G0
70*100*10		AB3530E0
71*95*13	AC3549E1	AB3549E0
72*100*12	AC3562E0	AB3562G0
75*100*13	AC3618E0	AB3618H0
75*105*12	AC3628E0	AB3628E0
75*105*15	AC3631E0	AB3631E0
80*100*10	AC3732E1	AB3732E0
80*100*13		AB3734E0
80*100*9	AC3731E0
80*105*13	AC3744A0	AB3744H0
80*115*15	AC3761E0	AB3761F0
82*105*13	AC3786E0	AB3786E0
85*105*15		AB3837E0
85*110*13	AC3842G0	AB3842H0
85*120*15	AC3855E0	AB3855E0
88*115*13	AC3879E0	AB3879E0
90*110*13		AB3921E0
90*115*13	AC3932A0	AB3932H0
90*115*15		AB3934E0
90*120*13	AC3938E0	AB3938E0
90*125*15	AC3944E0	AB3944E0
90*130*13		AB3948E0
95*115*13		AB3984E0
95*120*13	AC3994E0	AB3994F0
95*125*14		AB4000E0
95*130*15	AC4007E0	AB4007E0
98*120*15		AB4033E0
100*120*12		AB4055E0
100*120*13		AB4056E0
100*125*13	AC4063G2	AB4063A0
100*125*15		AB4065E0
100*130*13		AB4073E1
100*130*15		AB4074E0
105*125*15		AB4146E0
105*130*13		AB4150E0
105*135*14	AC4153F0	AB4153E0
105*140*15		AB4161E0
110*140*14	AC4212E0	AB4212E0
110*140*15		AB4213E0
110*145*14		AB4220E0
110*145*15		AB4221E0
112*145*14		AB4237F0
115*145*14	AC4282F0	AB4282A0
115*150*16		AB4292E0
120*140*13		AB4330E1
120*150*14	AC4346F0	AB4346A0
120*155*16	AC4355E0	AB4355E0
125*155*14	AC4399E1	AB4399A0
125*160*16	AC4404E0	AB4404E0
128*153*18		AB4433E0
130*160*14	AC4451F2	AB4451A0
130*160*15		AB4452E0
130*160*16		AB4453E0
130*170*16	AC4465E0	AB4465E0
130*170*15		AB4464E0
135*165*14	AC4498E0	AB4498E0
135*170*15		AB4503E0
140*170*14	AC4542E0	AB4542A0
140*185*16	AC4558E0	AB4558E0
145*175*14	AC4581E0	AB4581A0
145*190*16	AC4588E0	AB4588E0
150*180*14	AC4624E1	AB4624A0
150*195*20		AB4635E0
155*180*15		AB4666E0
155*185*15		AB4669E0
155*190*14	AC4672E0
155*200*20		AB4678E1
160*190*15	AC4712E0	AB4712E0
160*190*16	AC4713E3	AB4713A0
160*190*14		AB4711E0
160*195*18	AC4717E2
160*200*14		AB4719E0
160*200*20		AB4721E0
160*210*20	AC4724E3	AB4724E0
165*220*20		AB4753E0
170*200*16		AB4795A0
170*210*15	AC4804E0
170*225*20	AC4815E0	AB4815E0
175*230*20		AB4855E0
180*210*16	AC4898E0	AB4898A0
180*210*15	AC4897F0
180*215*16		AB4904E0
180*220*15		AB4908E1
180*220*20	AC4911E1
180*225*20		AB4913E0
180*235*20		AB4915E2
190*220*15	AC4975E4	AB4975E0
190*220*14		AB4974F0
190*225*16		AB4983E0
190*225*15	AC4982E0
190*245*22	AC4993E0	AB4993E0
200*230*15	AC5053E1	AB5053P2
200*230*16	AC5054E0	AB5054G0
200*230*18		AB5056E0
200*230*14	AC5052E0
200*235*16		AB5060E6
200*240*20	AC5068E4	AB5068A0
200*240*16		AB5065E0
200*242*20	AC5070E1
200*250*16	AC5075E0
200*255*22		AB5079E0
205*260*23		AB5113E0
210*240*15	AC5133E0	AB5133E0
210*250*20	AC5140E0	AB5140A0
210*250*16		AB5138E0
210*250*18		AB5139E0
210*265*23		AB5146E0
210*265*25	AC5147E1
220*250*15	AC5204E6	AB5204E0
220*255*16	AC5207E0	AB5207E0
220*259*22	AC5210E0
220*260*22		AB5216A0
220*275*23	AC5224E0	AB5224E0
230*260*20		AB5283A0
230*260*15	AC5281E0
230*285*23	AC5296E0	AB5296E0
240*270*15	AC5339E0
240*275*16	AC5346E2
240*280*19		AB5351A0
250*280*15	AC5398E1	AB5398E7
250*310*25	AC5412E5	AB5412A0
260*300*20	AC5461E6
260*320*25		AB5471A0
270*330*25		AB5523A0
280*316*18	AC5558E1
280*320*18		AB5560E0
280*330*24	AC5568E0
280*340*28		AB5572A0
290*330*18		AB5586E0
290*350*25		AB5597A0
300*345*22		AB5631E0
300*360*25		AB5640A0



내경*외경*두께	VC타입	VB타입
7*16*6		AF0082E2
7*20*5	AG0089AO	AF0089E3
8*14*4	AG0123E2	AF0123F2
8*18*4	AG0141E2
8*22*5	AG0156AO
9*22*5	AG0204AO
10*20*4	AG0256EO	AF0256EO
10*25*5	AG0276AO	AF0276EO
12*22*4	AG0369EO	AF0369E2
12*25*5	AG0380AO	AF0380EO
12*30*6	AG0391EO	AF0391EO
12*32*5	AG0397EO
13*28*5	AG0477AO
14*24*4		AF0511FO
14*24*6	AG0514EO	AF0514EO
14*28*5	AG0524AO	AF0524EO
14*34*6	AG0538EO
15*25*4	AG0585EO	AF0585EO
15*30*4	AG0595FO	AF0595EO
15*30*5	AG0596AO	AF0596EO
15*32*6	AG0602EO	AF0602EO
15*35*6	AG0608EO	AF0608EO
16*24*4	AG0668EO	AF0668EO
16*28*4		AF0682E2
16*30*5	AG0686A4
17*30*5		AF0741F1
17*30*7	AG0743EO
17*32*6	AG0749EO	AF0749EO
17*35*5	AG0757AO
18*30*5		AF0814EO
18*35*6	AG0827AO
18*38*7	AG0838EO
19*35*6	AG0873AO	AF0873EO
19*40*6		AF0882FO
20*26*6		AF0964F1
20*32*5	AG0994E1	AF0994GO
20*34*5	AG1001EO
20*35*6	AG1010AO	AF1010FO
20*40*5	AG1027AO	AF1027EO
20*40*7	AG1029EO
20*42*6	AG1035EO
20*47*6		AF1047EO
21*40*7	AG1092EO
22*32*5		AF1113E2
22*34*5	AG1119EO
22*35*5	AG1124FO	AF1124EO
22*38*6	AG1132EO	AF1132EO
22*42*5	AG1144AO	AF1144EO
22*47*7	AG1161EO
23*32*7	AG1213E8
23*42*6	AG1222A5
24*38*5	AG1250EO	AF1250EO
24*40*6	AG1258AO	AF1258GO
24*47*5	AG1268EO
25*35*5	AG1291EO	AF1291EO
25*38*5	AG1303EO	AF1303F2
25*40*5	AG1311AO	AF1311GO
25*40*6	AG1312AO	AF1312EO
25*41*6	AG1317EO
25*42*5	AG1321EO
25*45*5	AG1333EO	AF1333EO
25*45*7	AG1334EO	AF1334EO
25*47*5	AG1347EO	AF1347EO
25*47*6	AG1348E1	AF1348EO
25*50*5	AG1359E1	AF1359EO
26*40*5	AG1466EO
26*42*6	AG1473AO
26*48*6	AG1479EO	AF1479EO
27*42*7	AG1510EO
27*47*8	AG1517AO	AF1517EO
28*40*5	AG1535EO	AF1535GO
28*45*6	AG1548EO	AF1548EO
28*47*5	AG1556EO	AF1556EO
28*48*5		AF1560EO
28*48*6	AG6759AO
28*50*6	AG1568EO	AF1568FO
30*40*5	AG1654EO	AF1654EO
30*42*5	AG1663FO	AF1663EO
30*45*6	AG1676AO	AF1676EO
30*46*5	AG1686EO	AF1686EO
30*48*6	AG1698EO
30*50*5	AG1703AO	AF1703EO
30*50*8	AG1705EO	AF1705EO
30*52*5	AG1717EO	AF1717EO
30*55*5	AG1731EO	AF1731EO
30*56*5	AG1741EO	AF1741E1
32*45*5	AG1876EO	AF1876EO
32*48*6	AG1892EO
32*52*5	AG1899AO	AF1899EO
34*54*8	AG6760AO
35*45*5		AF2033EO
35*47*5	AG2039EO	AF2039EO
35*48*5	AG2044E1
35*50*5	AG2053EO	AF2053EO
35*50*6	AG2055AO	AF2055EO
35*52*5	AG2064EO	AF2064EO
35*55*5	AG2079AO	AF2079FO
35*55*8	AG2081EO	AF2081EO
35*60*5	AG2102EO	AF2102EO
35*62*6	AG2115EO
38*50*5		AF2215EO
38*54*6	AG2228EO
38*55*6	AG2229E1	AF2229EO
38*58*5	AG2237EO
38*58*8	AG2239AO	AF2239EO
38*64*5		AF2253EO
40*52*5	AG2340EO	AF2340FO
40*55*5	AG2357E1	AF2357EO
40*58*6	AG2367AO	AF2367EO
40*60*5	AG2373EO	AF2373EO
40*62*5	AG2382EO	AF2382E3
40*62*6	AG2383AO	AF2383EO
40*62*8	AG2386EO	AF2386EO
40*65*5	AG2399EO	AF2399EO
40*65*6	AG2400EO	AF2400EO
42*55*6	AG2480E1	AF2480EO
42*55*7		AF2481EO
42*60*7	AG2492FO	AF2492EO
42*65*9	AG2504AO	AF2504EO
45*60*6	AG2640E1	AF2640EO
45*62*7	AG2649AO	AF2649EO
45*65*5		AF2655EO
45*68*6	AG2664AO	AF2664EO
45*68*9	AG2666AO	AF2666EO
45*70*6	AG2674EO
45*72*6	AG2682EO	AF2682EO
48*62*6	AG2772EO
48*62*8	AG2774EO
48*65*7	AG2779EO	AF2779EO
48*70*6	AG2787AO	AF2787E2
50*65*6	AG2835EO	AF2835EO
50*68*7	AG2846AO	AF2846EO
50*72*5	AG2859EO
50*72*6	AG2860AO	AF2860EO
50*72*9	AG2861EO
50*80*6	AG2883EO	AF2883EO
50*80*7	AG2884EO	AF2884EO
52*65*6	AG2954EO
52*70*7	AG2958EO	AF2958EO
52*75*9	AG2965AO
55*70*6	AG3034EO	AF3034E2
55*72*7	AG3038A4	AF3038EO
55*74*6		AF3044EO
55*78*9	AG3053AO
56*70*6	AG3088E1	AF3088EO
58*72*6	AG3143EO
58*75*7	AG3147E2	AF3147EO
58*80*5		AF3150EO
58*80*6	AG3151EO
58*80*9	AG3152AO	AF3152EO
60*75*6	AG3191E1	AF3191EO
60*78*7	AG3203EO	AF3203GO
60*82*6	AG3217A4	AF3217EO
60*82*9	AG3220EO	AF3220EO
60*85*6	AG3230E1	AF3230EO
60*90*7	AG3240EO	AF3240EO
62*75*6	AG3283E1
62*85*6	AG3293AO	AF3293EO
63*80*7	AG3315E1	AF3315FO
65*85*9	AG3393EO
65*88*5	AG3397E3
65*88*6	AG3398AO	AF3398EO
68*90*7	AG6761AO
70*88*7	AG3503EO
70*90*10	AG3512E1	AF3512EO
70*92*5	AG3515EO
70*92*7	AG3516AO	AF3516EO
70*92*12	AG3519EO
70*95*7	AG6762AO
74*95*7	AG3584AO
75*100*7	AG3613A4	AF3613EO
75*100*8	AG3614EO	AF3614EO
80*95*6	AG3723E1	AF3723EO
80*100*7	AG3729E1	AF3729EO
80*105*7	AG3739A4
80*110*7	AG3752E1
85*100*9	AG3830EO
85*105*9	AG3833FO
85*110*7	AG3939A4
85*110*8		AF3840EO
90*115*5	AG3926EO
90*115*13	AG3932FO
95*115*9	AG3982EO
95*120*8	AG3990EO	AF3990E0
95*135*13	AG4010EO
100*125*8	AG4059EO	AF4059E1
105*150*12		AF4166E0
110*140*8	AG4208E2
110*150*15		AF4225E0
112*130*7	AG4233EO
115*135*8	AG4275EO
115*140*13		AF4278E0
120*150*14		AF4346E0
135*165*14	AG4498EO
140*165*15		AF4539E0
140*170*10		AF4540E0
140*170*14	AG4542EO
165*190*13		AF4736E1
195*220*15		AF5018E0
200*230*16		AF5054E2
220*255*12	AG5206E1
240*280*15	AG5349EO



내경*외경*두께	TCV타입	TCN타입
7*20*7	AP0090E0
8*18*7	AP0145E0
8*22*7	AP0158F0
10*25*7	AP0279E0
12*25*7	AP0382E0
13*28*7	AP0478E0
14*28*7	AP0526F0
15*30*7	AP0598A0
16*30*7	AP0687F0
17*35*8	AP0760E0
18*35*8	AP0829E0
19*35*8	AP0875E0
20*32*8	AP0997E0
20*40*11	AP1033A0
22*35*8	AP1127E0
22*42*11	AP1148E0
23*42*11	AP1224E0
24*40*8	AP1260E0
25*40*8	AP1314H0
25*45*11	AP1338A0	AP1338F0
26*42*8	AP1474F0
27*47*11	AP1518F0
28*48*11	AP1563K0	AP1563J4
30*42*7	AP1665E0
30*50*11	AP1709A0	AP1709H4
32*52*11	AP1904G0	AP1904F3
34*54*11	AP1978F0	AP1978G1
35*55*11	AP2085A0	AP2085G1
38*58*11	AP2240A0	AP2240G4
40*62*11	AP2388A0	AP2388E5
42*65*12	AP2507G0	AP2507H2
45*68*12	AP2668A0	AP2668G4
48*70*12	AP2791F0	AP2791G0
50*72*12	AP2864A0	AP2864I3
52*75*12	AP2967F0
55*78*12	AP3055G0	AP3055F3
58*80*12	AP3154E0
60*82*12	AP3222G0	AP3222B6
62*85*12	AP3297F0	AP3297G3
65*90*13		AP3409F1
70*95*13		AP3527B9
75*100*13		AP3618G7
80*105*13		AP3744K5
85*110*13		AP3842H3
90*115*13		AP3932B7
95*120*13		AP3994B7
100*125*13		AP4063B0
105*135*14		AP4153H0
110*140*14		AP4212B0
115*145*14		AP4282G0
120*150*14		AP4346B7
125*155*14		AP4399E0
130*160*14		AP4451G3
135*165*14		AP4498G0
140*170*14		AP4542F0
150*180*14		AP4624G0
170*200*16		AP4795F0
190*225*16		AP4983E0
